Rapid Impact Compaction (16-Ton Drop Hammer) for Factory Foundation Improvement

About This Video

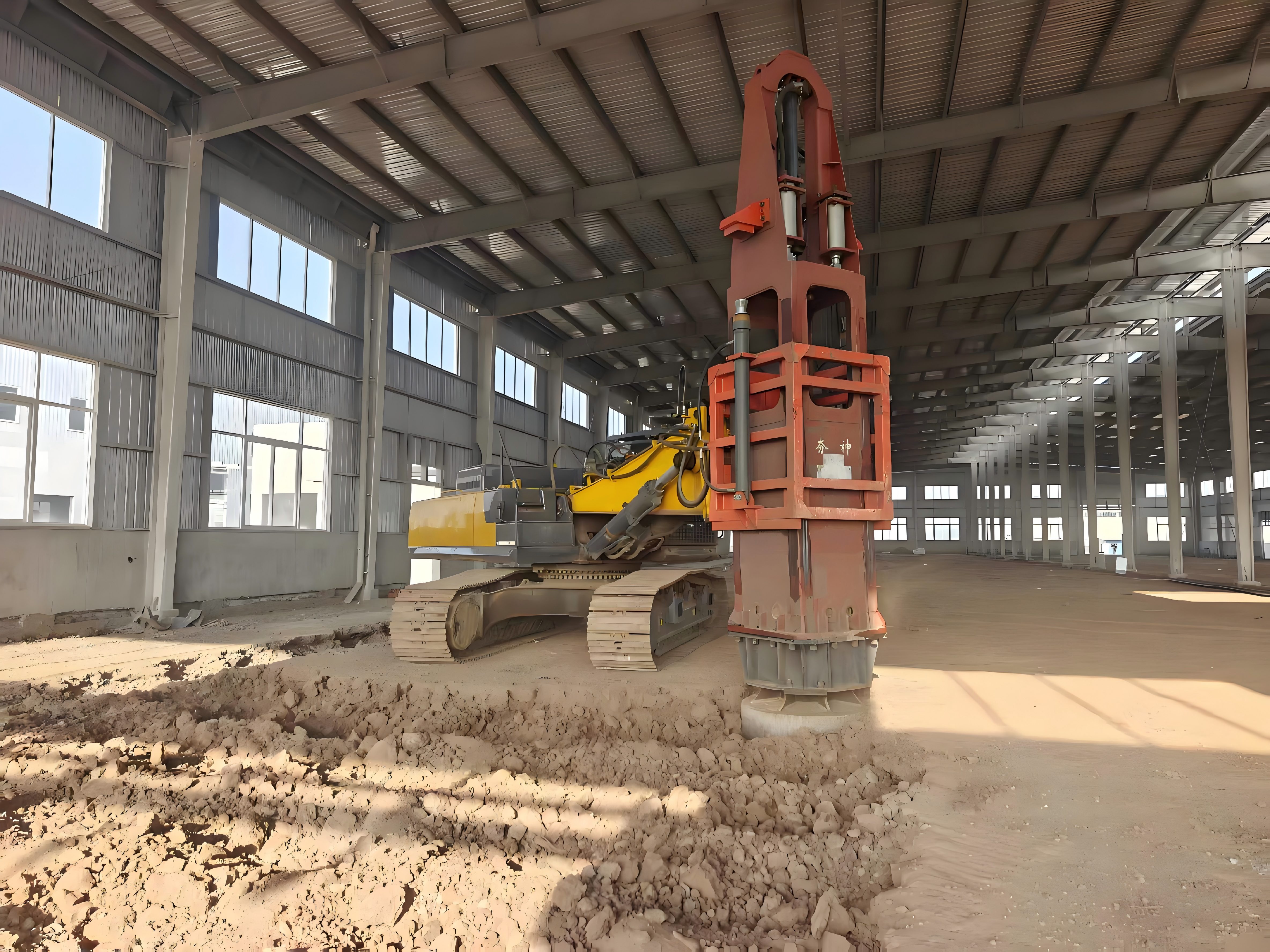

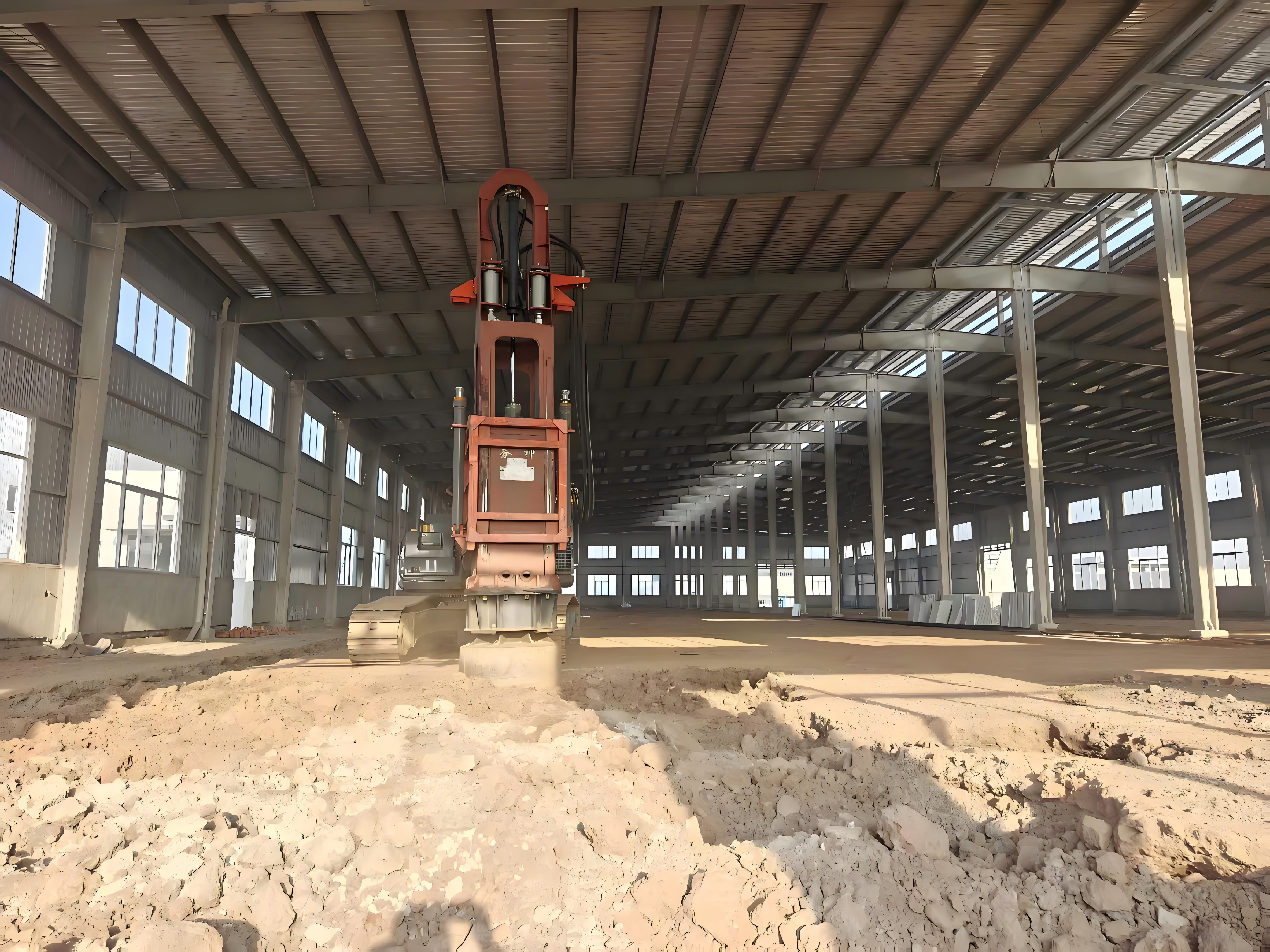

On-site footage of Rapid Impact Compaction (RIC) for factory foundation improvement.

How serious can foundation settlement become? The impact crater shown here provides a clear visual answer.

Its depth indicates the potential natural settlement that may develop over time if the foundation is not properly treated. When settlement exceeds allowable limits, it can directly affect the safe and stable operation of equipment inside the factory.

The Rapid Impact Compaction (RIC) system is equipped with a 16-ton drop weight, delivering up to 240 kJ of impact energy and achieving an effective compaction depth of 5 to 9 meters.

With a working height of only 7.6 meters, the system can operate efficiently inside factory buildings. It offers high mobility, flexible maneuverability, and excellent compaction efficiency, making it ideal for industrial foundation improvement in confined spaces.

Technical Specifications

- Model: HC240

- Drop Weight Mass: 16,000 kg

- Total Weight: 28.9 tons

- Impact Energy: 240 kJ

- Working Height: 7,613 mm

- Effective Compaction Depth: 5-9 m

- Standard Tamping Plate Diameter: 2,000 mm

- Hydraulic Pressure: 31.5 MPa

- Hydraulic Flow: 600 L/min

- Compatible Excavator: 70 t class excavator or above with converted boom

- Examples: LIEBHERR R976, VOLVO EC750, CAT 395F
