The RIC (Rapid Impact Compaction) Excavator-Mounted Hydraulic Compactor utilizes the excavator’s hydraulic system to deliver high-frequency impact energy for ground improvement.It provides efficient and reliable compaction in confined areas such as factory sites, ports, subgrade foundations, and emergency repairs.
RIC MODEL：HC300
- Dropweight Mass：20000KG
- TOTAL WEIGHT：34.5 tons
- Impact Energy：300KJ
- WORKING HEIGHT：8218mm
- Effective Depth：5m-9m
- STANDARD TAMPING PLATE DIAMETER：2000mm
- Hydraulic Pressure : 31.5 Mpa
- Hydraulic Flow : 600 L/min
- Compatible excavator：70t above excavator converted boom (e.g., LIEBHERR R976;VOLVOEC750;CAT395F;)
RIC MODEL：HC240
- Dropweight Mass：16000KG
- TOTAL WEIGHT：28.9 tons
- Impact Energy：240KJ
- WORKING HEIGHT：7613mm
- Effective Depth：5m-9m
- STANDARD TAMPING PLATE DIAMETER：2000mm
- Hydraulic Pressure : 31.5 Mpa
- Hydraulic Flow : 600 L/min
- Compatible excavator：70t above excavator converted boom(e.g., LIEBHERR R976:VOLVOEC750:CAT395F:)

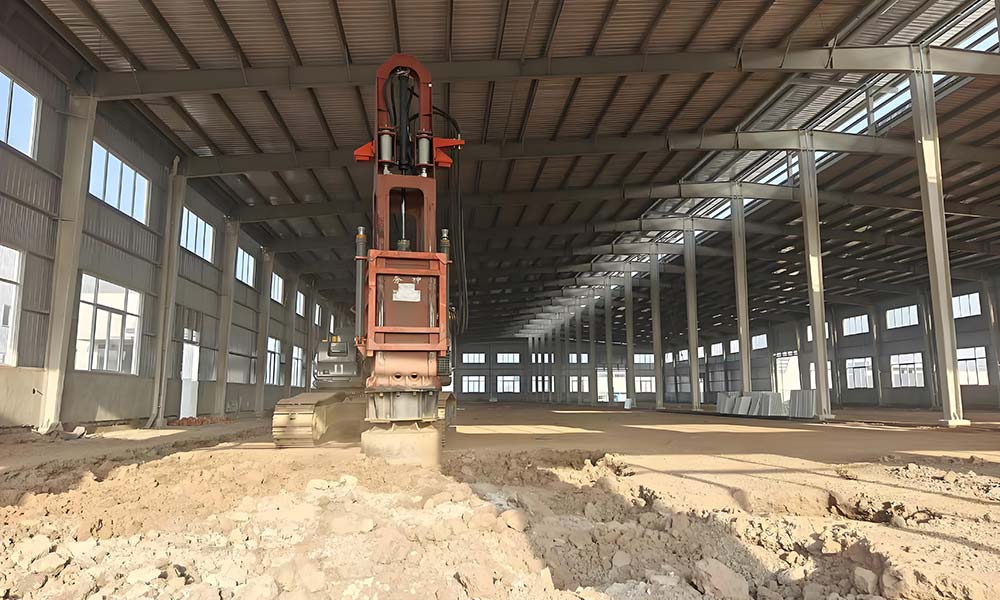

The on-site Rapid Impact Compaction machine, with a 16-ton drop weight, delivers up to 240 kJ of single-point impact energy, achieving an effective compaction depth exceeding 5 meters. With a working height of 7 meters, it can operate directly inside the factory for internal foundation work.
RIC MODEL：HC210
- Dropweight Mass：14000KG
- TOTAL WEIGHT：26.2 tons
- Impact Energy：210KJ
- WORKING HEIGHT：7135mm
- Effective Depth：4m-8m
- STANDARD TAMPING PLATE DIAMETER：1500mm
- Hydraulic Pressure : 31.5 Mpa
- Hydraulic Flow : 600 L/min
- Compatible excavator：60t above excavator converted boom (e.g., CAT374,SDLG E6600F,XCMG XE650GK,Sany SY650H))
RIC MODEL：HC180
- Dropweight Mass：12000KG
- TOTAL WEIGHT：23.8 tons
- Impact Energy：180KJ (180kN.m)
- WORKING HEIGHT：6838mm
- Effective Depth：4m-8m
- STANDARD TAMPING PLATE DIAMETER：1500mm
- Hydraulic Pressure : 31.5 Mpa
- Hydraulic Flow : 600 L/min
- Compatible excavator：60t above excavator converted boom (e.g., CAT374:SDLGE6600F:XCMGXE650GK;SanySY650H)

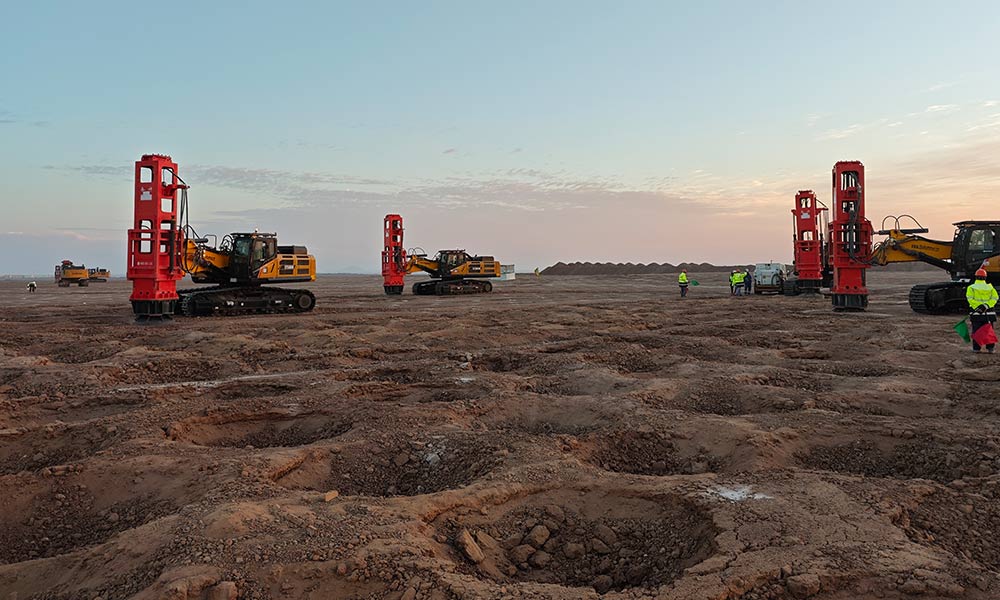

The HC180 Rapid Impact Compactor has been used in various projects, including the Hong Kong International Airport, Saudi Arabia's Abu Ghraib crude oil processing plant, Saudi Arabia's airport, Xiamen Airport, Jinan Yaoqi Airport, and more..
RIC MODEL：HC150
- Dropweight Mass：10000KG
- Effective Depth：4m-8m
- TOTAL WEIGHT：21.5 tons
- Impact Energy：150KJ (150kN.m)
- WORKING HEIGHT：6533mm
- STANDARD TAMPING PLATE DIAMETER：1500mm
- Hydraulic Pressure : 31.5 Mpa
- Hydraulic Flow : 600 L/min
- Compatible excavator：45-55t excavator converted boom (e.g., SUMITOMO SH490:VOLV EC480:CAT 349:)
RIC MODEL：HC108
- Dropweight Mass：9000KG
- Effective Depth：2.5m-6.5m
- TOTAL WEIGHT：20.1 tons
- Impact Energy：108KJ (108kN.m)
- WORKING HEIGHT：6450mm
- STANDARD TAMPING PLATE DIAMETER：1500mm
- HAMMER RATE：30 to 80 blows per minute
- Hydraulic Pressure : 25 Mpa
- Hydraulic Flow : 350 L/min
- Compatible excavator：40-45t excavator converted boom(e.g., SDLGE6400F:SUMITOMO SH450:CAT345:XCMGXE450)
RIC MODEL：HC84
- Dropweight Mass：7000KG
- Effective Depth：2.5m-6.5m
- TOTAL WEIGHT：13.5 tons
- Impact Energy：84KJ (84kN.m)
- WORKING HEIGHT：5100mm
- STANDARD TAMPING PLATE DIAMETER：1250mm
- Hydraulic Pressure : 25 Mpa
- Hydraulic Flow : 350 L/min
- Compatible excavator：40-45t excavator converted boom (e.g., SDLGE6400F:SUMITOMO SH450:CAT345:XCMGXE450)
RIC MODEL：HC60
- Dropweight Mass：5000KG
- Effective Depth：2.5m-6.5m
- TOTAL WEIGHT：10.8 tons
- Impact Energy：60KJ (60kN.m)
- WORKING HEIGHT：4660mm
- STANDARD TAMPING PLATE DIAMETER：1250mm
- Hydraulic Pressure : 25 Mpa
- Hydraulic Flow : 350 L/min
- Compatible excavator：35-40t excavator converted boom or 8T or above loader (e.g., CAT980L,KOMATSU PC360,VOIVO EC400, CAT336)

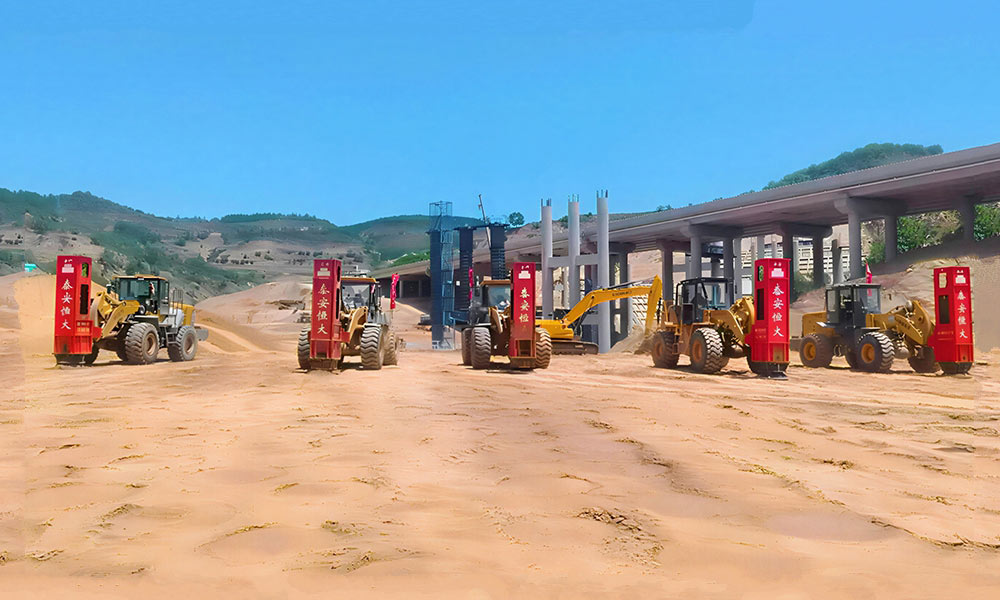

RIC MODEL：HC42
- Hammer WEIGHT：3500KG
- Dropweight Mass：3500kg
- TOTAL WEIGHT ： 6.3 tons
- Impact Energy：42KJ
- WORKING HEIGHT ：3730mm
- Effective Depth：1.2m-2.5m
- STANDARD TAMPING PLATE DIAMETER：1000mm
- Hydraulic Pressure : 16 Mpa
- Hydraulic Flow : 160 L/min
- Compatible excavator：30t excavator or 5t loader (e.g., VOLVOL120GZ:CAT 950L:HITACHIZX360:)
RIC MODEL：HC36
- Hammer WEIGHT(Dropweight Mass)：3000KG
- TOTAL WEIGHT ： 5.8 tons
- Impact Energy：36KJ
- WORKING HEIGHT ：3730mm
- Effective Depth：1.2m-2.5m
- STANDARD TAMPING PLATE DIAMETER：1000mm
- Hydraulic Pressure : 16 Mpa
- Hydraulic Flow : 160 L/min
- Compatible excavator：30t excavator or 5t loader (e.g., VOLVOL120GZ:CAT 950L:HITACHIZX360:)
